MCWlaser DY10 220V Laser Power Supply for RECI 80W 90W W1 W2 CO2 Laser Tubes - Perfect for Laser Engraving, Cutting Machines & DIY Projects

Parameters: Model: DY10 Input AC Voltage: 220V Input AC Frequency: 47-440Hz Input Max. Current: 2.3A Output Max. DC Voltage: 35kV Output Max. DC Current: 25mA Efficiency: ≥90%(Full load condition) MTBF: ≥10,000 hours Respond Speed: ≤1ms Operating Environment: Temperature between -10℃ and 40℃, relative humanity ≤90% Insulation Withstand Voltage: Input-output, output-case: AC1500V, 10mA 60s; The negative output electrode is connected to the case Cooling Method: Fan cooling Start/Stop Test: 500 times 7 seconds Weight: 1.75kg

Be recommended to work with RECI 75W 80W 90W ( W1 and W2) laser tube

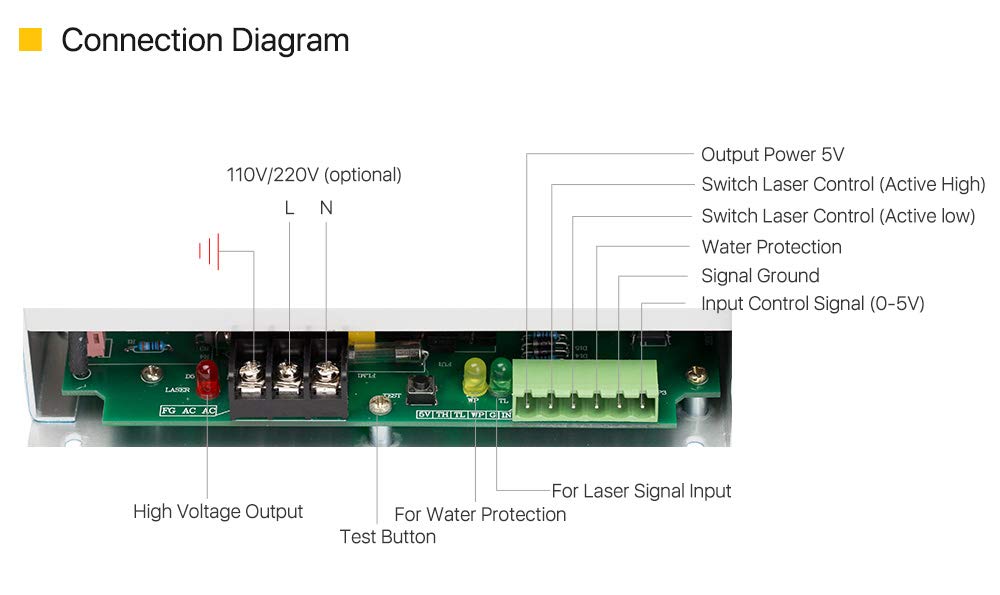

The power supply comes with TTL signal indication,water through signal indication and laser output indication.

Easy operation The start and stop of laser can be easily controlled by TTL level.

Quick response speed and effect; High performance

Voltage 220V.
