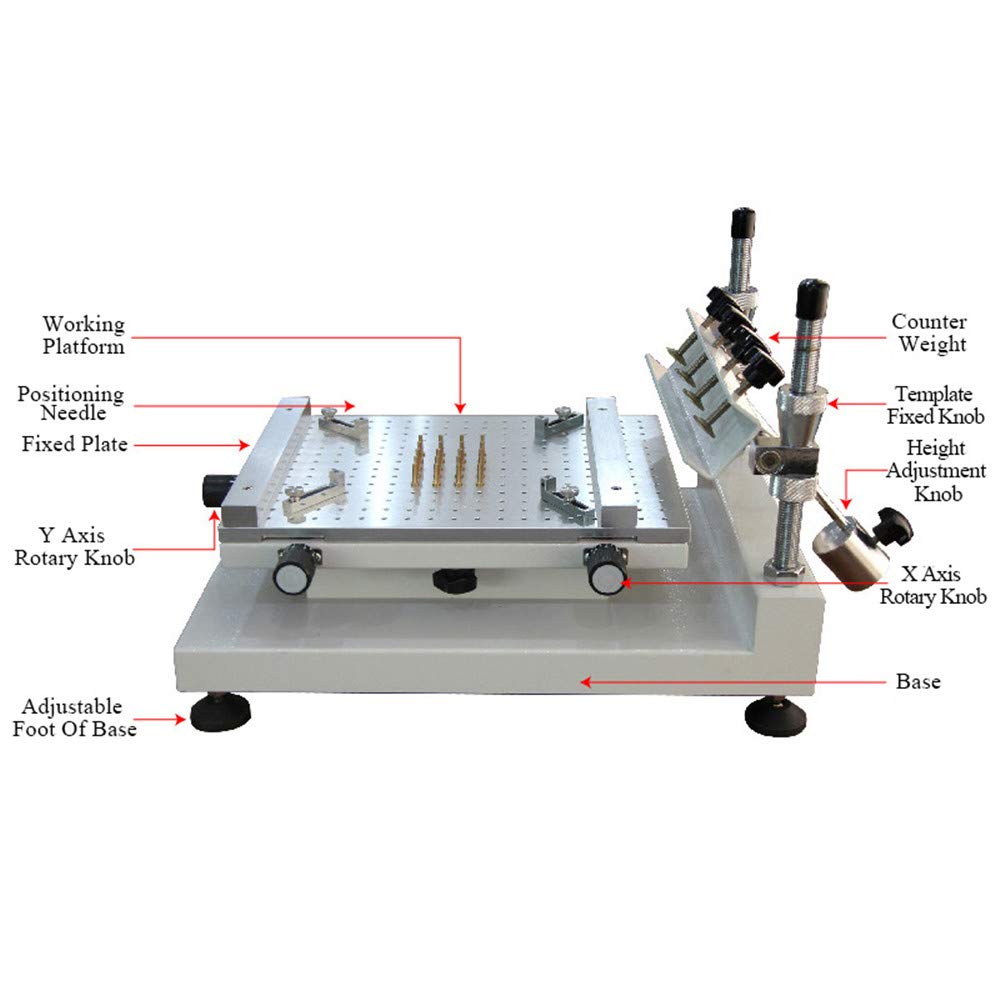

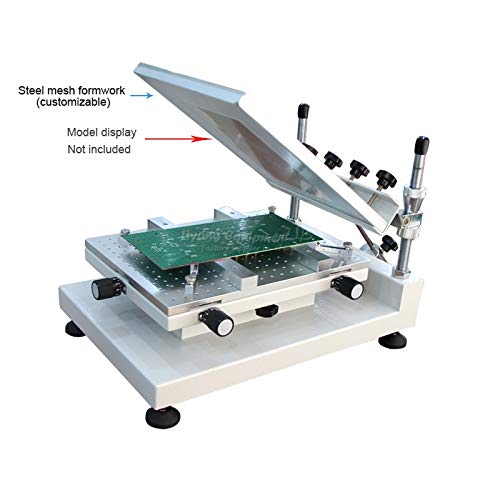

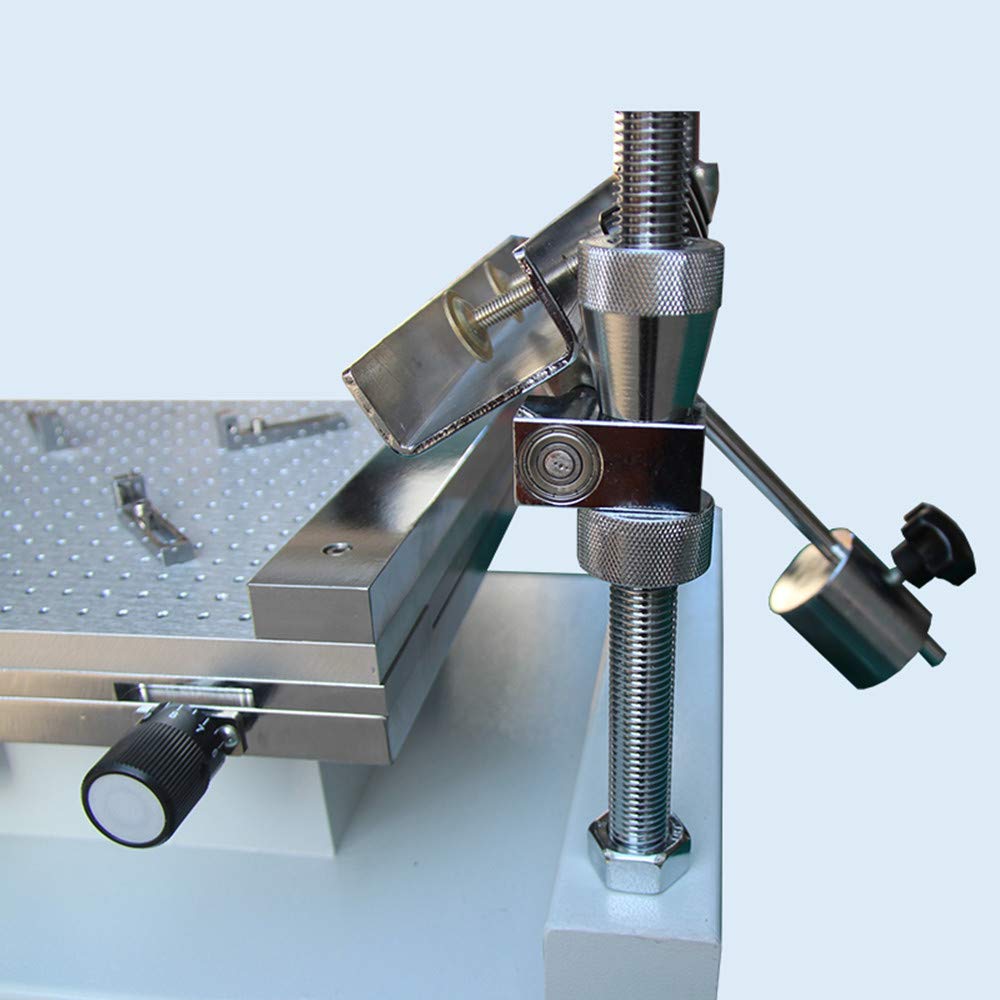

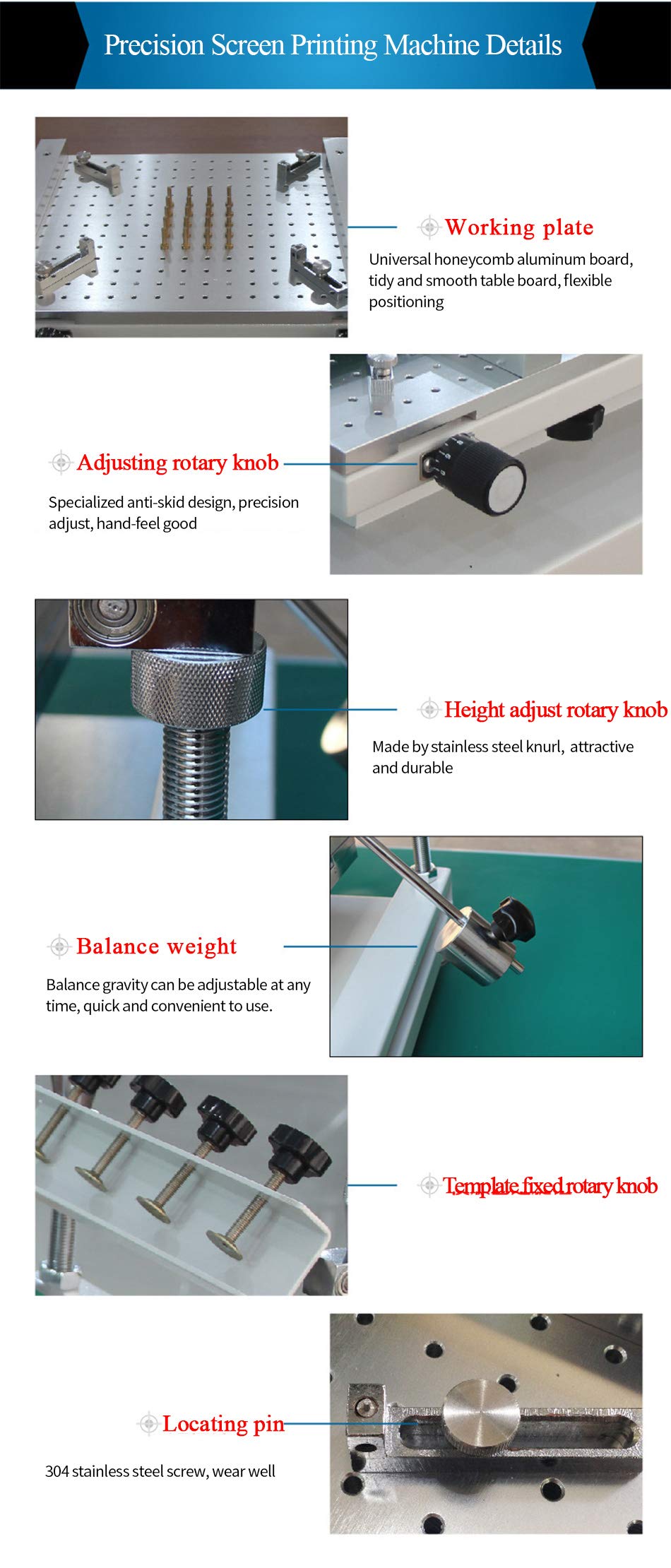

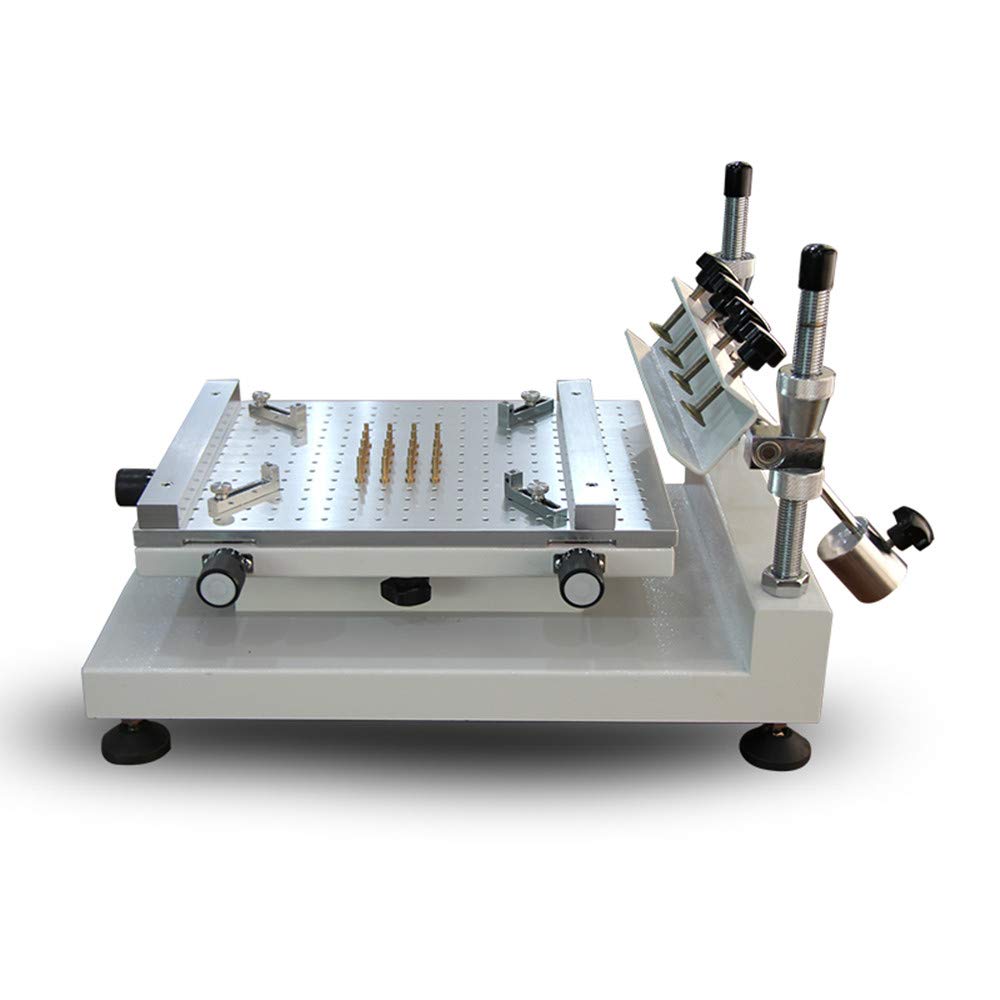

Dimensions(L×W×H): 540×370×350 mm (mm) Platform Size: 300×400(mm) PCB Size: 250×400(mm) Template Size: 370×470(mm) Printing speed : Manual control PCB Thickness: 0~80(mm) PCB Tuning range Front/ Side: +10mm Platform height: 240(mm) Repeatability: ±0.01mm Positioning mode : Outside/Reference hole CGOLDENWALL High Precision Stencil Printer SMT Screen Printing Machine T-Shirt Screen Printing Machine Printing Area : 300mm * 440mm 1.You can choose the same with the printing machine platform ,in addition ,Single and double panel location convenient and high flexibility ,To ensure the printing accuracy. 2.Printing screen can be rotated 45 degrees, with a high repeat precision,can be comparable to the machine. 3.Using steel net mobile school edition, and connecting with the printing platform X, Y axis fine-tuning calibration, convenient and quick. 4.Frame made of thickening machine is superior material selection and strong, durable;Steel mesh stent using spiral screw up and down, adjustable height, convenient to control the thickness of the PCB NO. 1 using thimble and honeycomb hole, ouble sided positioning, pining is more accurate All aluminum honeycomb operating table, with L type support, easy to fix PCB circuit board position, multi thimble support PCB circuit board, so that when printing solder paste, the circuit board is in a horizontal state without deformation, thus ensuring the unity of printing paste NO.2 The base is made of thickened steel plate, laser cuting and CNC forming The base is welded by heavy steel plate, and it is firm, durable NO.3 Steel mesh height adjustment The steel mesh frame adopts spiral screw rod, which can adjust the height up and down, easy to controlthe thickness of PCB and the amount of printing paste. The latest design of X axis angle adjustmenfunction can be rotated 45 degrees, greatly reducing the makeready NO.4 Trimming knob ensures accuracy of solder paste Horizontal, vertical and angle micro adjustment table position, convenient and accurate alignment of PCB circuit board and steel plate position ensure the accuracy of the solder paste
