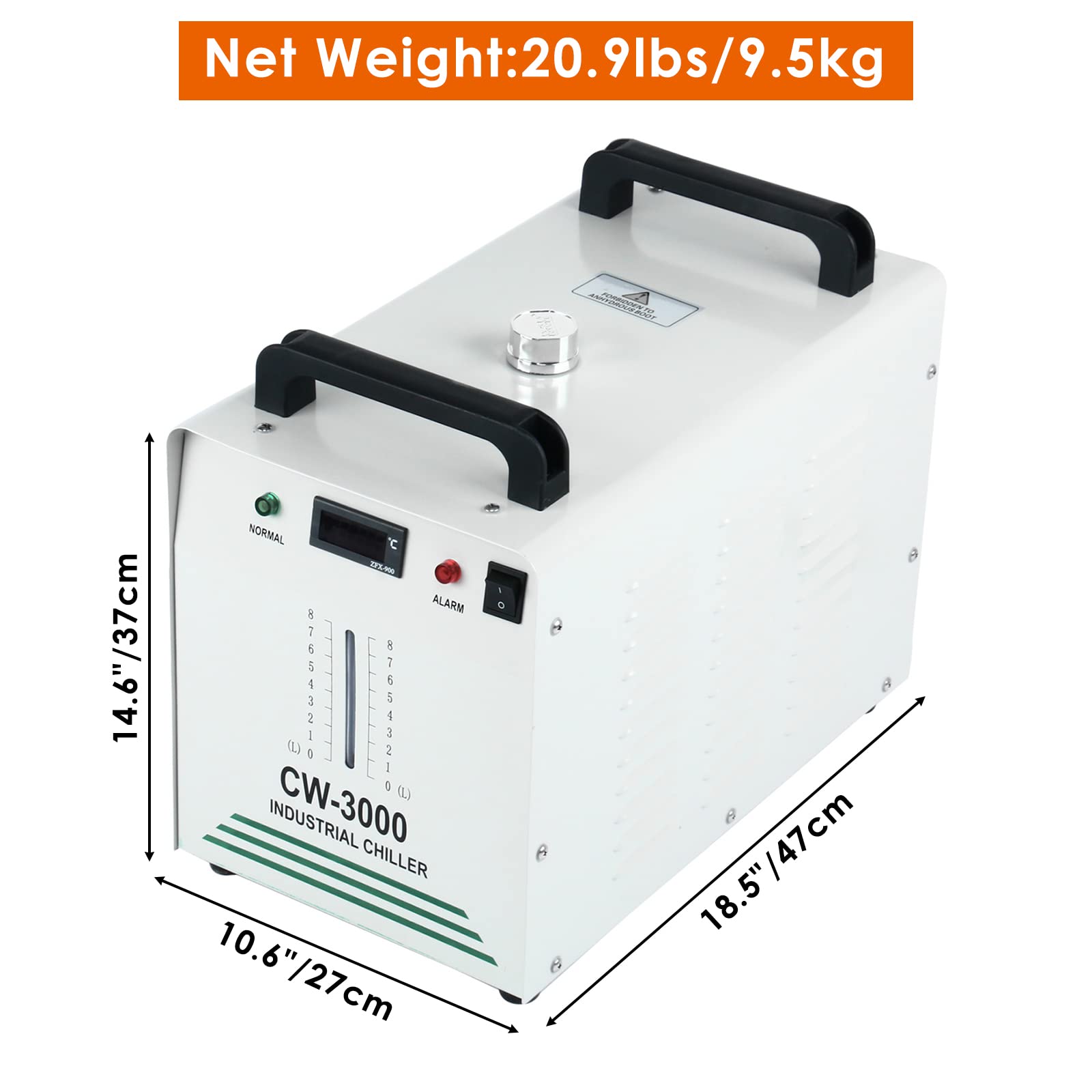

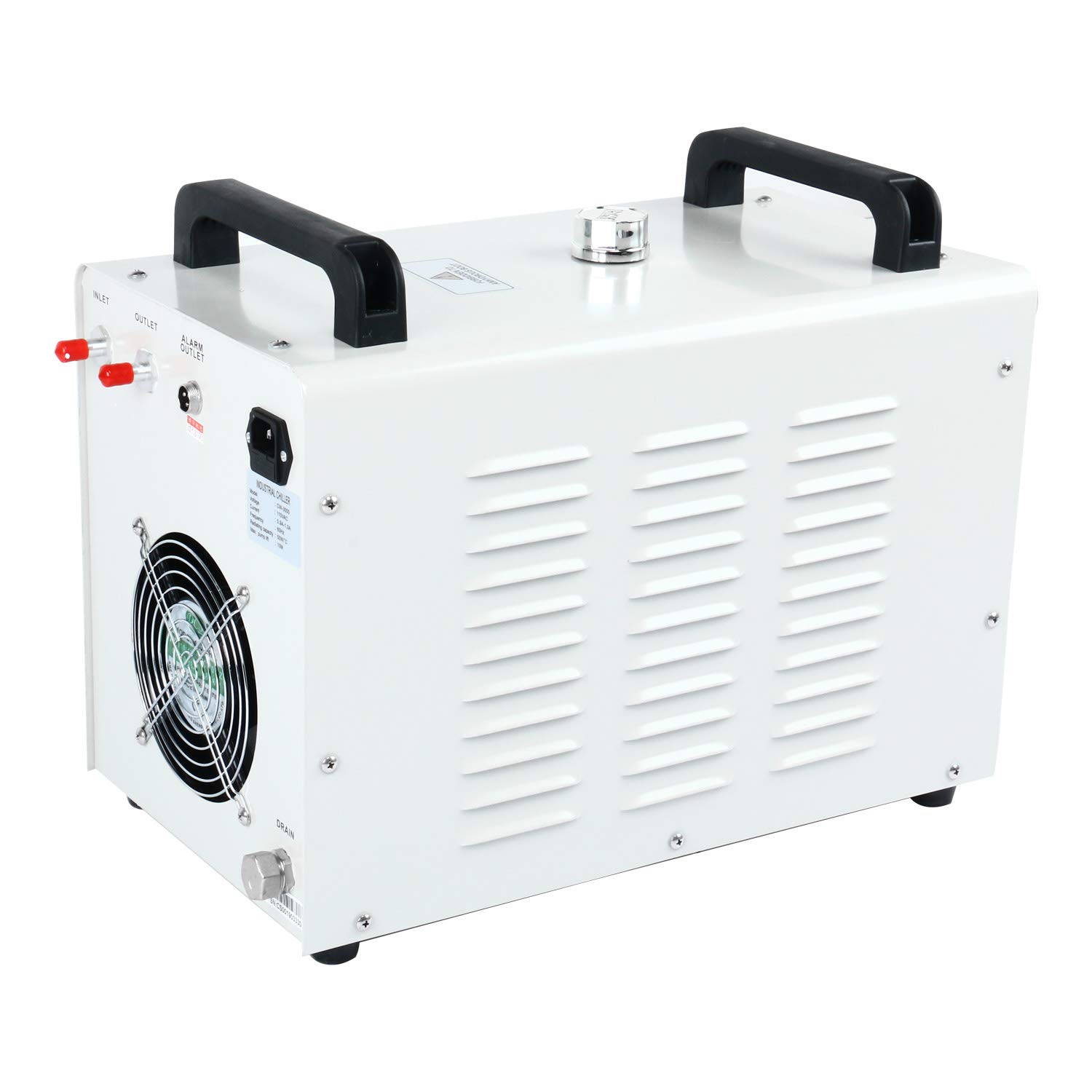

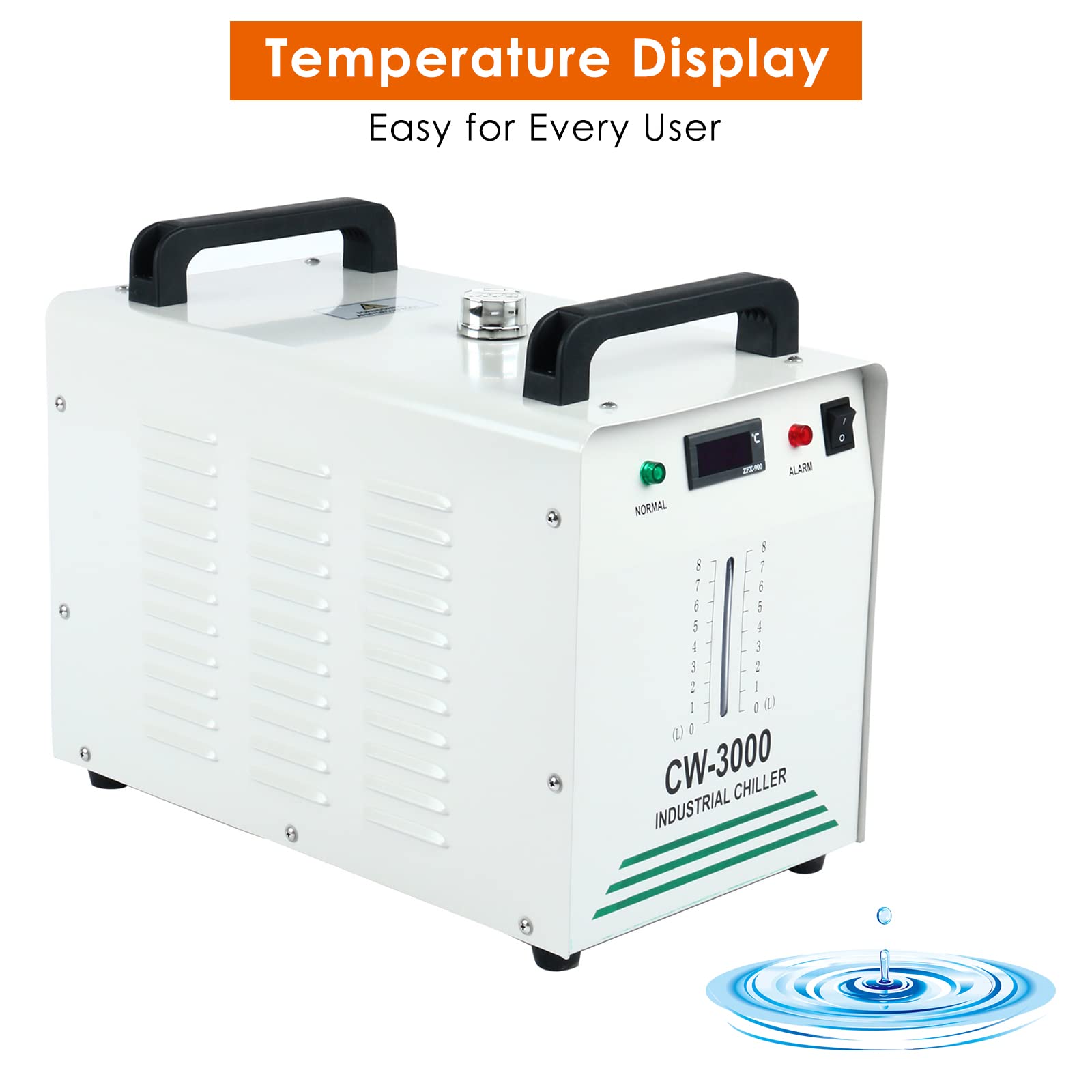

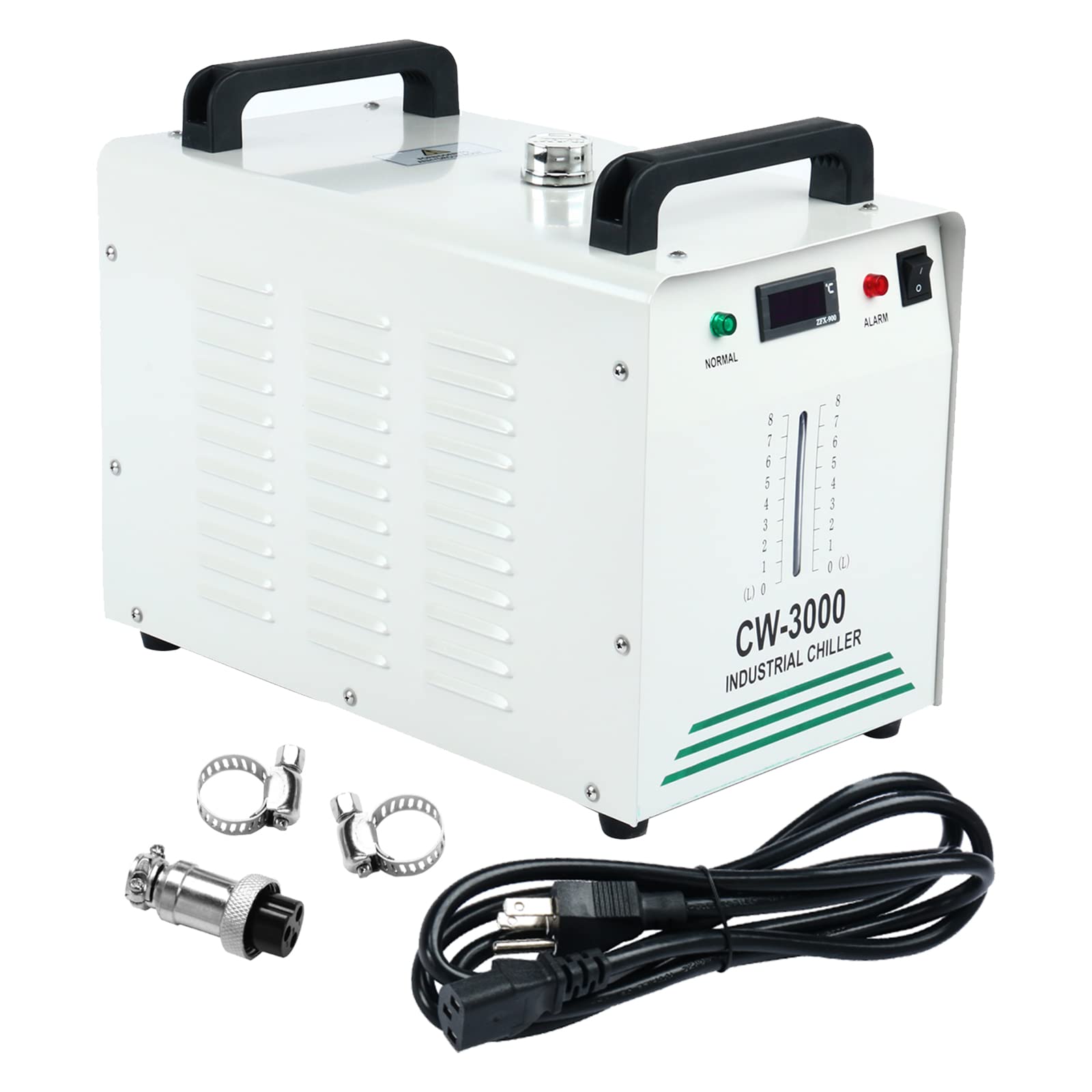

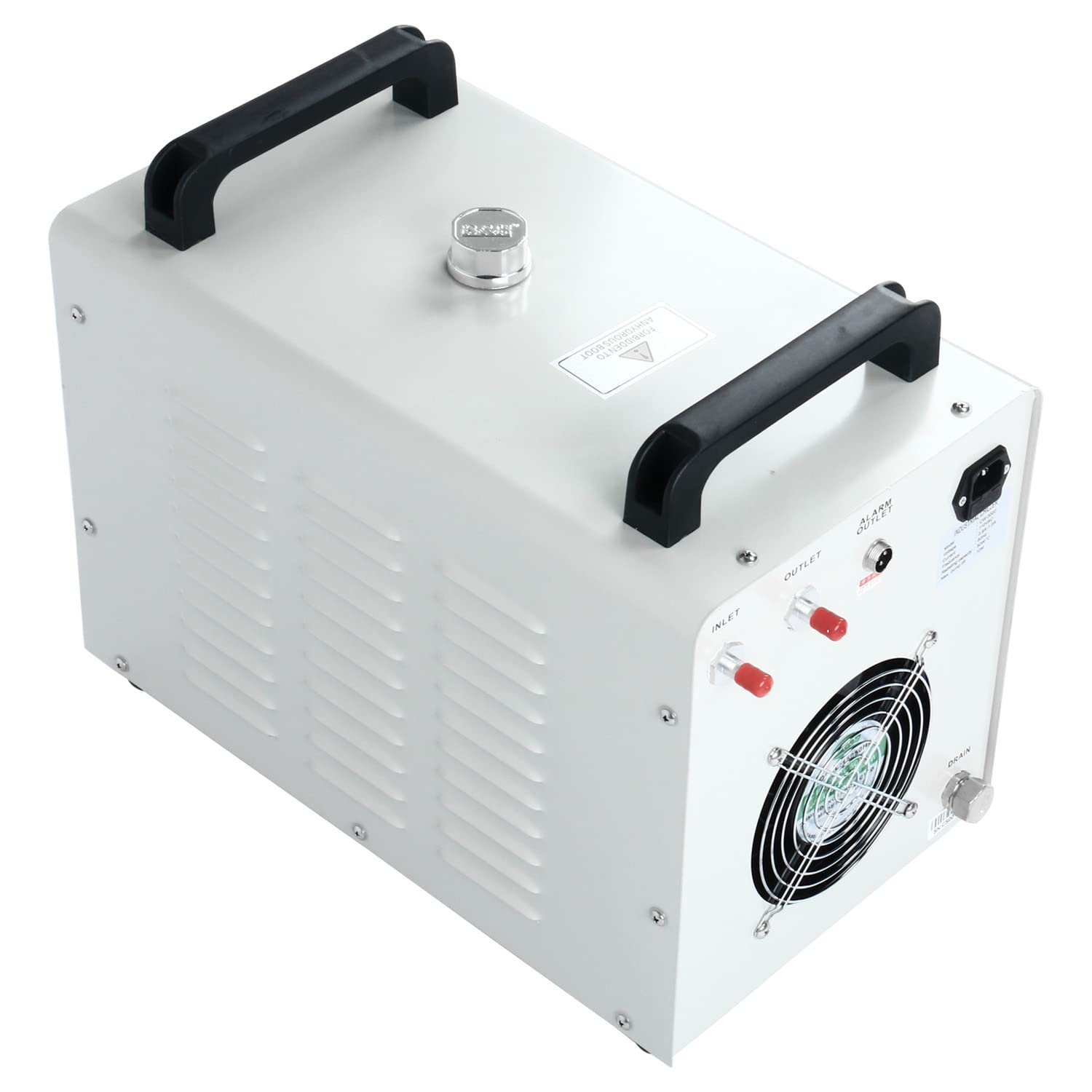

DasMarine CW-3000 8L Industrial Water Chiller - 110V Thermolysis Cooling System for 60W/80W Laser Engraving Machines | Efficient Water Cooling Equipment for Laser Cutting & Engraving Workshops

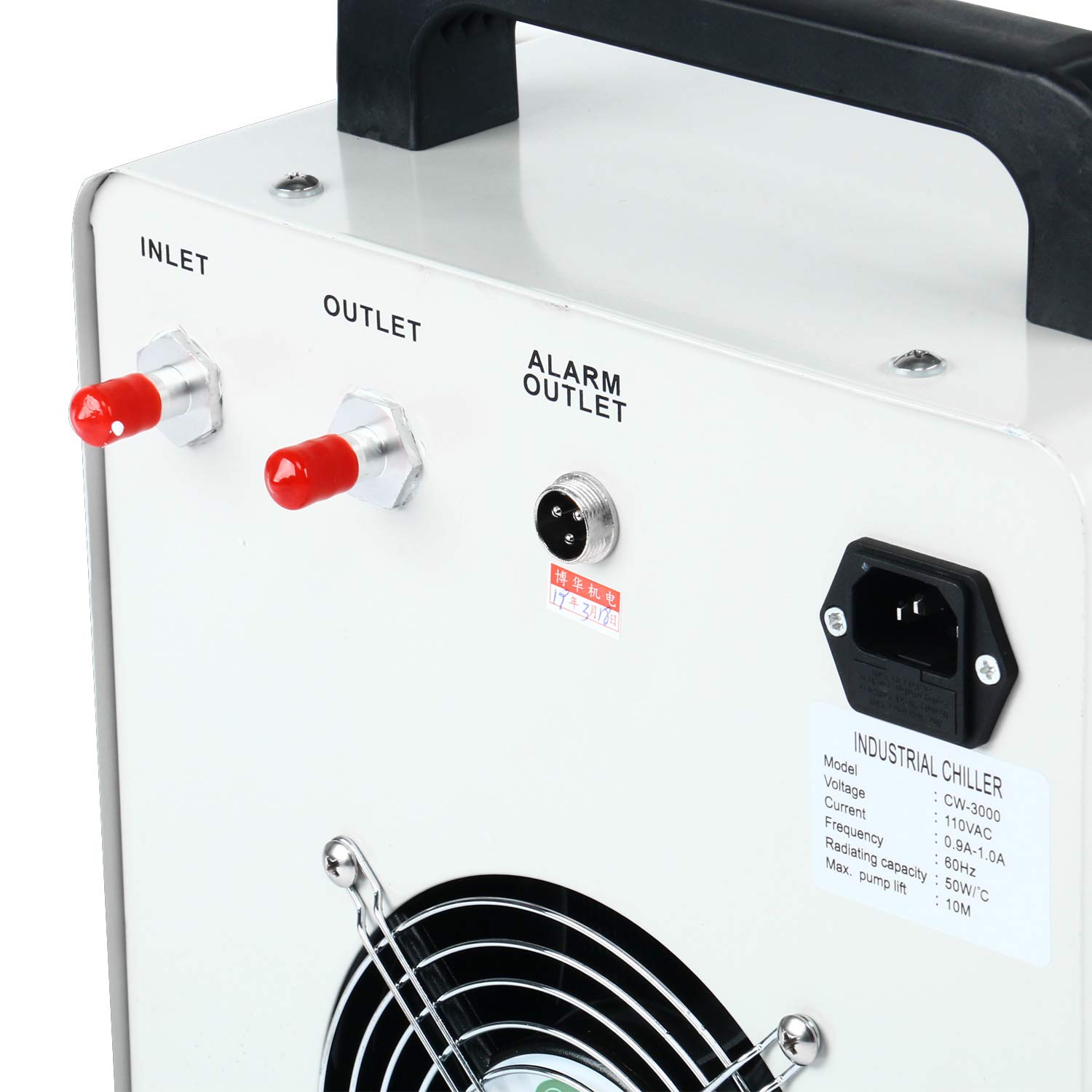

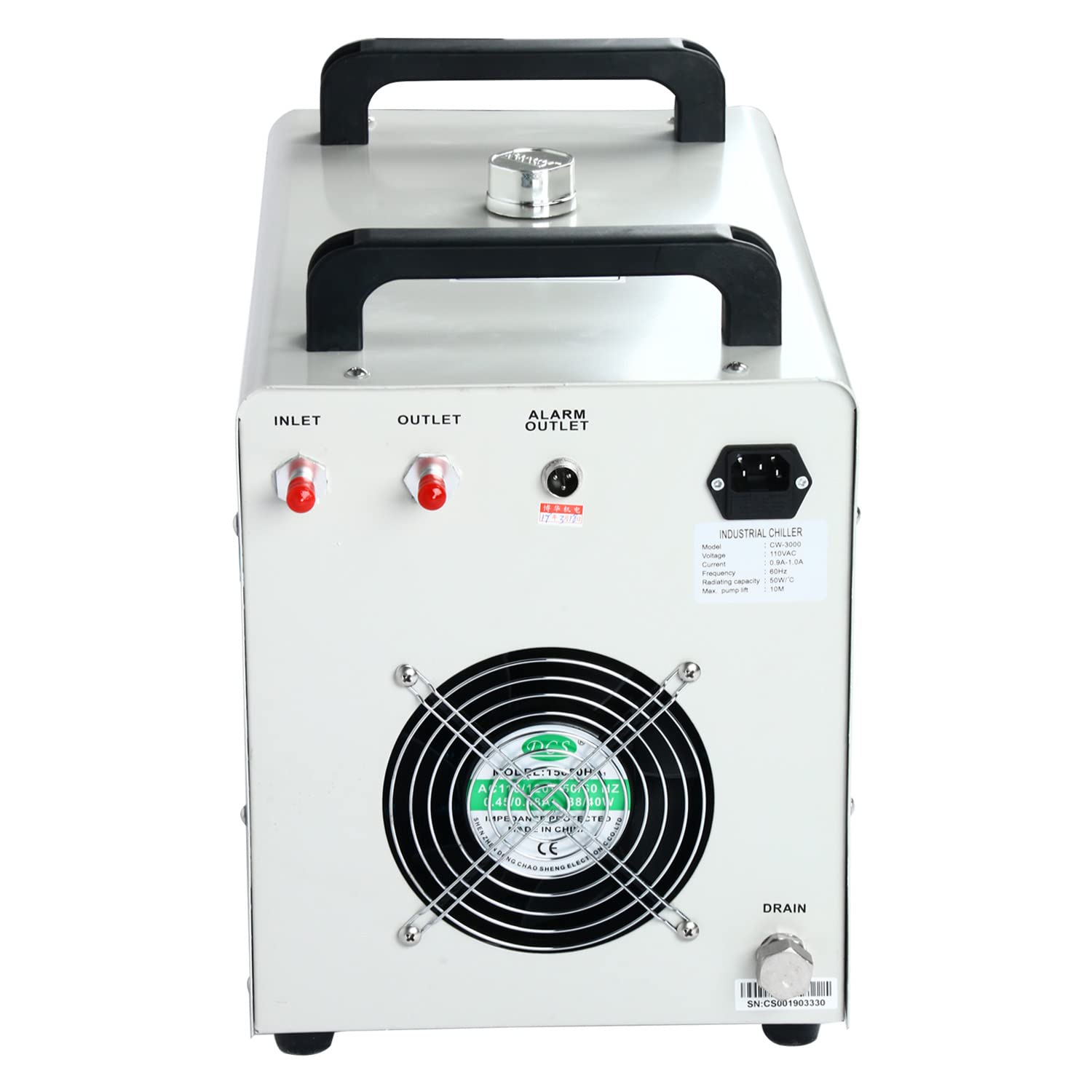

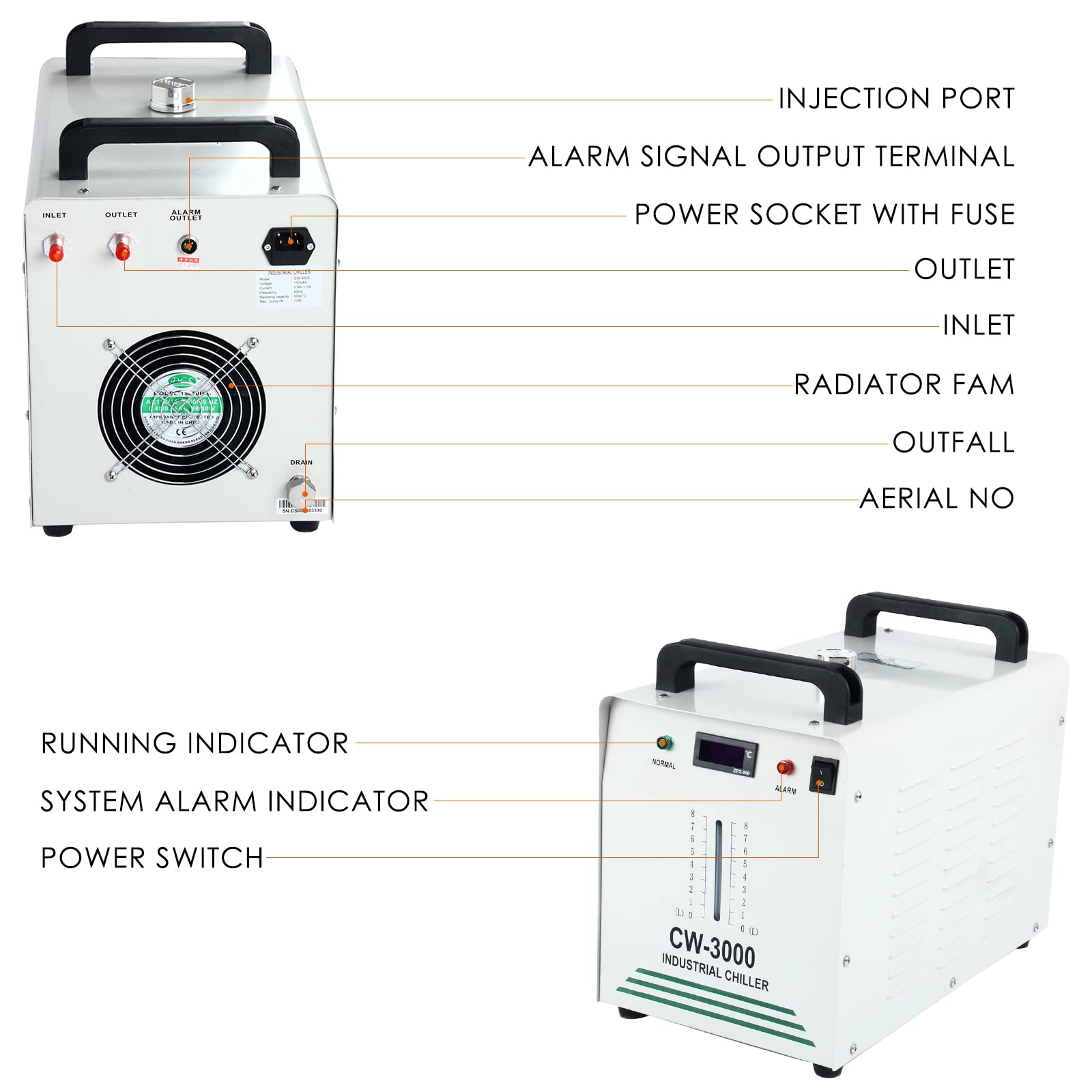

This water chiller is designed for cooling the spindle of the cnc engraving machine. Applied to cool a single 80W or below CO2 laser tube (emitting rate lower than 60%) . Economic cooling equipment, easy to install and operate, compact and easily movable. Advanced Features 8L Cooling Tank Capacity This industrial water chiller has a 8L large capacity to ensure you powerful cooling performance.Equipped with a precision scale, you can fill with water according to the scale. Efficient Cooling Fan and Drain Professional forced air-cooled radiator,high heat dissipating capacity and not easy to be blocked. The drain is installed at the bottom, which can quickly drain the water from the water tank when not in use, extending the service life of the chiller. Various Alarm Functions This CW-3000 water chiller has various protection and early warning functions: water flow shortage alarm protection, high/low-temperature alarm, compressor delay protection, pump breakdown. It's equipped with alarm output port, can quickly protect sensitive components. Product Parameter Model CW-3000 Voltage 110VAC Frequency 60HZ Current 0.9A Cooling 50W/°C Capacity 8L Max.Lift 10M Max.Flow 10L/min Protection flow alarm G.w. &N.W. 11.5kg/9.5kg Product Dimensions: 47*27*37cm(L*W*H) The First Installation Open the pacakge to check if the chiller machine is intact and all parts are complete.Open the injection port then add cooling water.(Do not alow the water overflow)According to system conditions,connect the water inlet and outlet pipe well.Plug in power,turn on the power switch.(Do not let the water spill over)Check the water level of the water tank again.(It should be water to the injection port) Package Include: 1 x CW3000 Water Chiller Machine 1 x User Manual 1 x Power Cable 1 x Spare Fuse 1 x Alarm Signal Output Plug 2 x Sealing Washer

The item was actually CW-3000, pls kindly rest assured to purchase. Specifcation ModelCW-3000AG Industrial Chiller ;ApplicationCool a single 80W CO2 glass laser tube or below CO2 laser tube (emitting rate lower than 60%),and for 0.8KW / 1.5KW Spindle Cooling.

Amount of Cooling 50W/℃;Maximum flow10L/min;Maximum pumping lift10M. The temperature changes with room temperature and is uncontrollable. It can only reach 1-45 degrees Celsius when used together with a compressor CW5000 or above.

This economic water cooling equipment , a small thermolysis water cooler, can save energy , has long working life and operate simply.

Professional forced air-cooled radiator,high heat dissipating capacity and not easy to be blocked,and equipped with alarm output port, can quickly protect sensitive components.

This CW-3000 water chiller, comprehensive reference to the international radiator - type cooling system, is suitable for small water cooling device.
