Seeed Studio RPLIDAR A1M8-R6 360° 2D Laser Scanner Kit - 8000Hz Sample Rate, 12m Range Radar Sensor for Robotics, Obstacle Avoidance & STEM Education | Perfect for Robot Navigation, Smart Home Mapping & Maker Projects

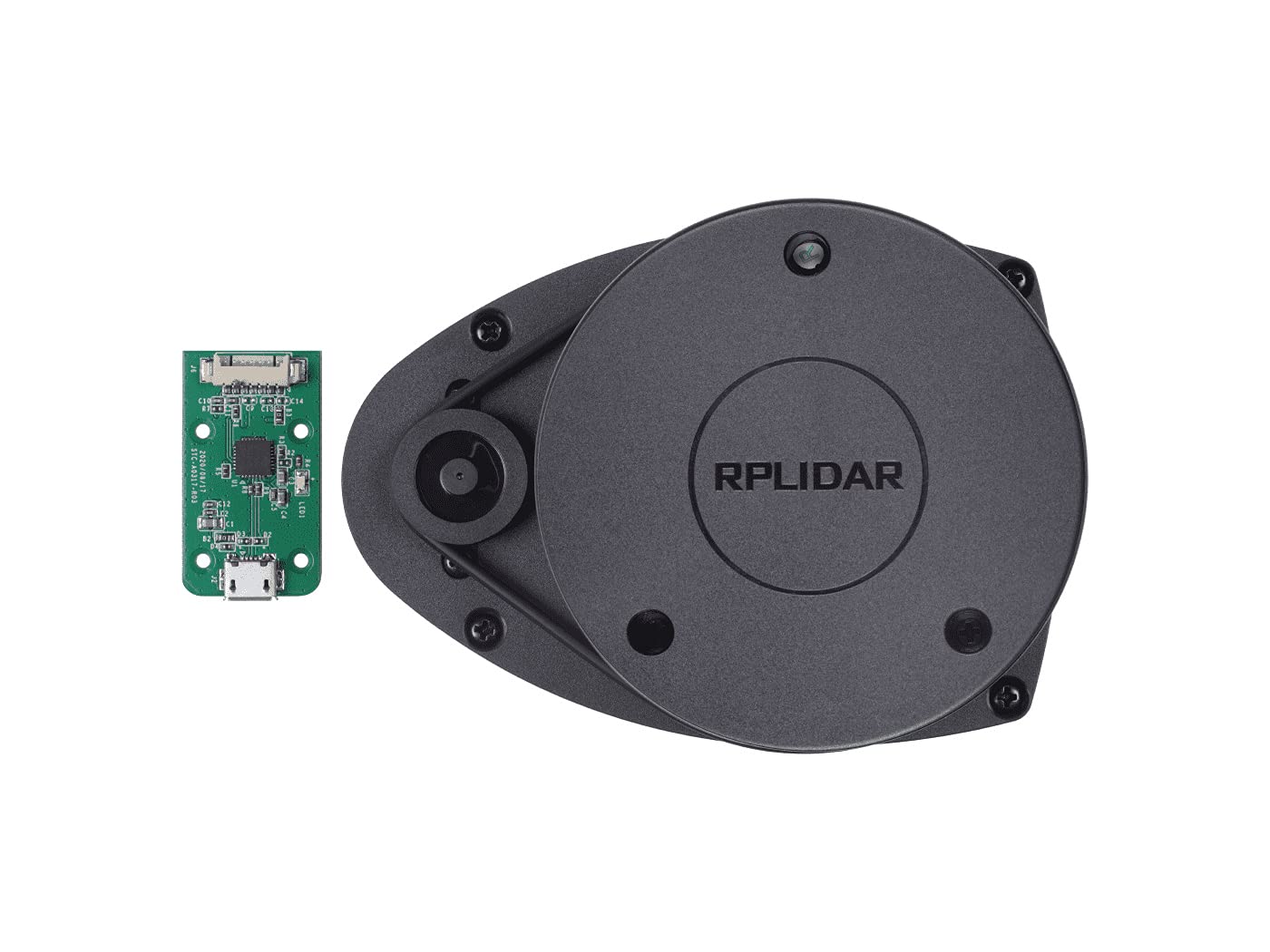

Part List 1 x RPLIDAR A1（PWM motor driver embedded） 1 x USB Adapter 1 x RPLIDAR A1 communication cable NOTE We have upgraded from the old version of RPLiDAR A1M8-R5 to the New Version of RPLiDAR A1M8-R6！ RPLiDAR A1M8-R6 360 Degree Laser Scanner Kit - 12M Range RPLIDAR A1 is a low cost 360-degree 2D laser scanner (LIDAR) solution developed by SLAMTEC. The system can perform a 360degree scan within a 6meter range. The produced 2D point cloud data can be used in mapping, localization, and object/environment modeling. Application Scenarios Home service /cleaning robot navigation and localizationGeneral robot navigation and localizationSmart toy’s localization and obstacle avoidanceEnvironment scanning and 3D re-modelingGeneral simultaneous localization and mapping (SLAM) NOTE We have upgraded from the old version of RPLiDAR A1M8-R5 to the New Version of RPLiDAR A1M8-R6！ RPLIDAR A1’s scanning frequency reached 5.5 Hz when sampling 360 points each round. And it can be configured up to 10 Hz maximum. RPLIDAR A1 is basically a laser triangulation measurement system. It can work excellently in all kinds of indoor environments and outdoor environments without sunlight. Specifications Dimensions 98.5mm x70mm x60mm Weight G.W 170g Battery Exclude Distance Range 0.15 - 6m,White objects Angular Range 0-360 Degree Distance Resolution <0.5mm Angular Resolution ≤1Degree Sample Duration 0.5ms Sample Frequency 2000~2010Hz Scan Rate 1~10Hz,Typical 5.5Hz A1M8 A2M8 A3M1 S1 M2M1 Add to Cart Buying Options Buying Options Buying Options Buying Options Customer Reviews 3.8 out of 5 stars 34 4.2 out of 5 stars 3 — — — Price $169.00$169.00 — no data — no data — no data — no data Distance Range 0.15m －12m 0.15m －12m White object: 25m/ Dark object: 10m White Objects: 40m/ Black Object: 10m 40m Measurement Resolution ＜0.5 mm/<1% of actual distance * <0.5 mm/<1% of actual distance * no data 3cm no data Angular Resolution ≤1° ≤0.9° 0.225° 0.313°-0.587° no data Sample Rate 2000 – 8000 Hz 2000 – 8000 Hz 16 kHz or 10 kHz 9200 Hz 9.2K Working Environment Indoor Indoor Indoor & Outdoor Indoor & Outdoor Indoor & Outdoor

【High Accuracy】This laser scanner series has a sampling rate of 8000 times/s and is the highest performance in the COSPA LIDAR industry. In addition, The laser ranging distance is 12 meters, so it can collect environmental information well.

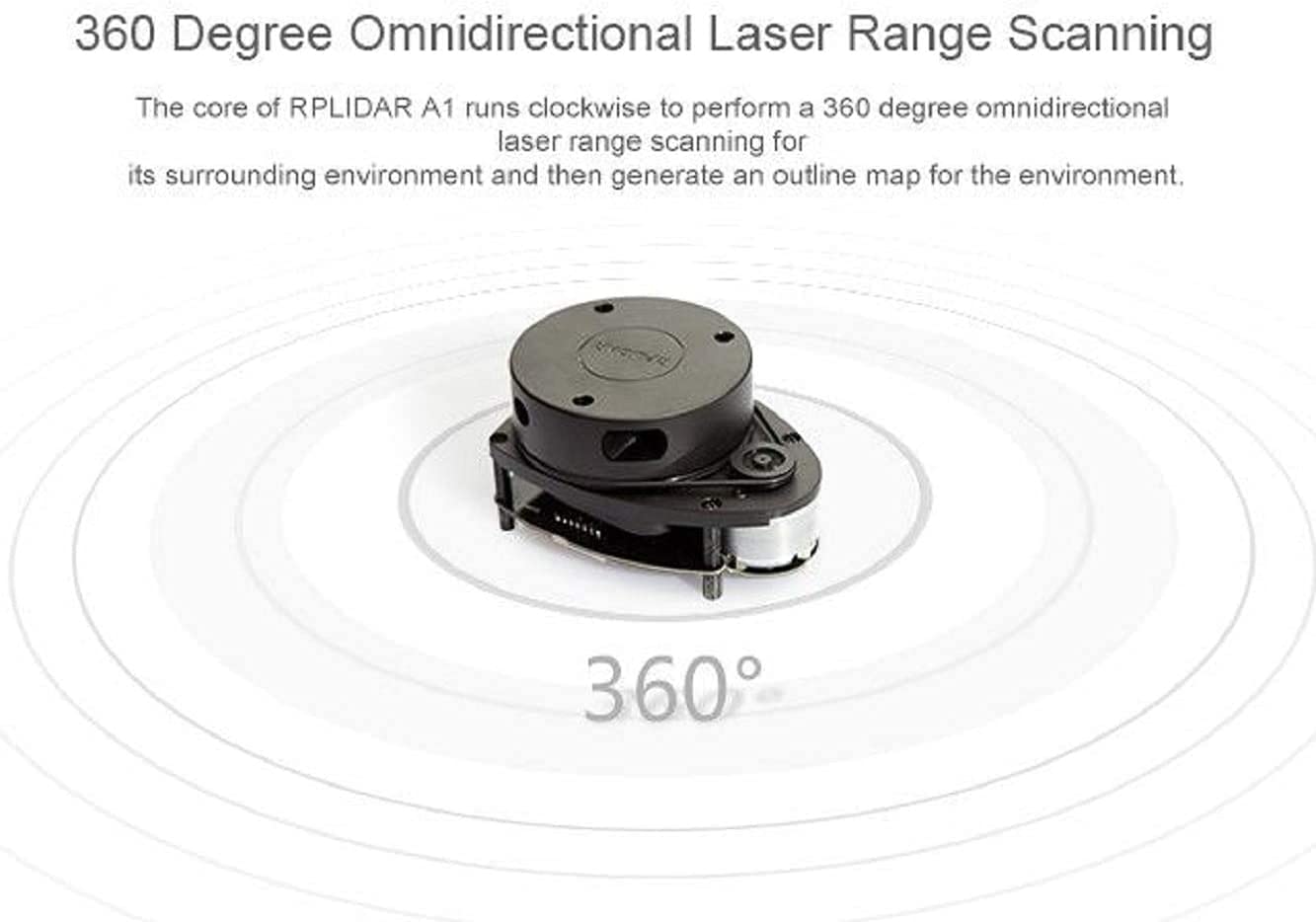

【360 Degree Scanning】The ranging core of RPLIDAR A1M8 rotates clockwise, performs 360 degree omnidirectional laser range scan on the surrounding environment, and generates an outline map. configurable scan rate from 2~10Hz, Typical 5.5Hz.

【Plug and Play】With the 3 feature Build-in Serial Port and USB Interface, Open Source SDK and Tools and Integration with ROS, Just connecting the RPLIDAR and a computer via a micro USB cable, users can use the RPLIDAR without any coding job.

【OPTMAG Original Design】This laser scanner integrates wireless power and optical communication technology with OPTMAG technology, which repairs electrical connection errors due to physical wear and prolong the life-span.

【Widely Application】It can be used for home service/cleaning robot navigation and localization, general robot navigation and localization, smart toy’s localization and obstacle avoidance, environment scanning and 3D re-modeling, General simultaneous localization and mapping (SLAM), etc.
